Policy Based Routing Sim (exam)

CCNP Route lab for the 300-101 exam


ROUTE Policy Based Routing Sim





Please apply this configuration and double check the interface on each router..
Border router Configuration

config t
hostname Borderrouter
interface f0/1
ip address 10.1.103.1 255.255.255.0
no shut
interface s0/0
ip address 10.1.101.1 255.255.255.0
no shut
interface f0/0
ip address 10.1.102.1 255.255.255.0
no shut
router eigrp 11
network 10.1.101.0 0.0.0.255
network 10.1.102.0 0.0.0.255
ip default-gateway 10.1.101.2

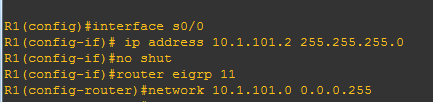

R1 Configurations:
config t
interface s0/0
 ip address 10.1.101.2 255.255.255.0
no shut router eigrp 11
network 10.1.101.0 0.0.0.255


1.-First you need to create an access-list, which allows all HTTP traffic.

 BorderRouter#access-list 111 permit tcp any any eq www

2.-Secondly you need to create route-map to send the traffic through Frame-relay interface.

route-map pbr permit 10
match ip address 101
set ip next-hop
10.1.101.2
exit
route-map pbr permit 20

 (Notice:"pbr" is just name of route-map, you can use any name. The route-map pbr permit 20 line allows other traffic than HTTP to be routed. Otherwise, other traffic will be dropped

3.- Apply the route-map on the interface to the server in the EIGRP Network:
BorderRouter(config-route-map)#exit
BorderRouter(config)#int fa0/1
BorderRouter(config-if)#ip policy route-map pbr
BorderRouter(config-if)#exit





Testing and Verification:

In the real exam , there  is a “Host for Testing” button, click on that. Then click on this “Generate HTTP traffic button to generate some packets for HTTP traffic. Jump back to the BorderRouter and type the command “show route-map”.
BorderRouter#show route-map


Your lab is done!
